Heavy-Duty Centrifugal Pumps DUCHTING
Each unit is hydraulically matched to the customer’s specific fluid properties (viscosity, density, solids size/shape, pH, temperature) through a design-build process
Centrifugal
Heavy-Duty DUCHTING

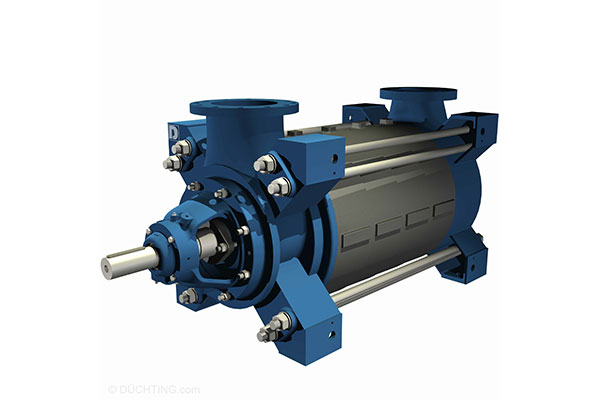

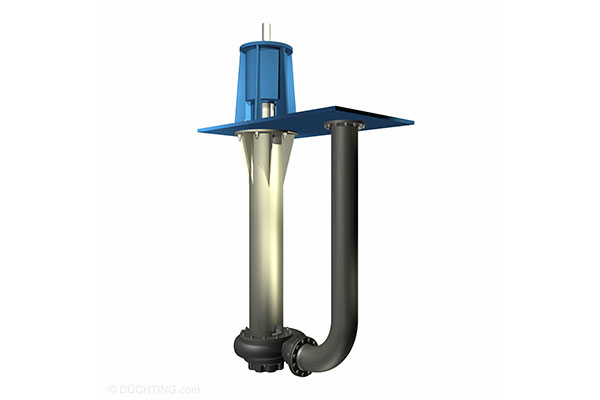

DÜCHTING PUMPEN specializes in heavy-duty centrifugal pumps for highly abrasive, corrosive, and solids-laden fluids. Unlike standard pump suppliers, DÜCHTING’s core philosophy is application-specific engineering, producing primarily single-stage (horizontal and vertical) and multi-stage radial-partition casing pumps.
The cornerstone of DÜCHTING’s technology is its proprietary SICcast® material – a high-performance composite of silicon carbide (SiC) and epoxy resin. With a hardness exceeding 9.5 on the Mohs scale (approaching diamond, 10).
In select pump series, all wetted components (impeller, casing, wear plates, shaft sleeves) are manufactured from solid SICcast®. This eliminates the need for rubber linings or coatings that can delaminate or swell.
DÜCHTING does not offer standardized "catalogue pumps." Each unit is hydraulically matched to the customer’s specific fluid properties (viscosity, density, solids size/shape, pH, temperature) through a design-build process. While this results in higher initial capital cost, the extreme wear resistance of SICcast® delivers significantly lower total cost of ownership (TCO) through reduced maintenance and extended pump life.
Characteristics
Type MC
Max. Flow
1500 m3/h
Max. Pressure
16 bar
Max. Density
1,700 g/l
PH Value
0 -13
Max. Particle Size
5 mm
Type MCC
Max. Flow
20000 m3/h
Max. Pressure
6 bar
Max. Density
1,700 g/l
PH Value
0 -13
Max. Particle Size
5 mm
Type MCS
Max. Flow
320 m3/h
Max. Pressure
10 bar
Max. Density
1,700 g/l
PH Value
0 - 13
Max. Particle Size
5 mm
Type MCV
Max. Flow
12500 m3/h
Max. Pressure
8 bar
Max. Density
1,700 g/l
PH Value
0 - 13
Max. Particle Size
5 mm
Type WR
Max. Flow
12000 m3/h
Max. Pressure
16 bar
Max. Density
1,700 g/l
PH Value
0 - 14
Max. Particle Size
100 mm
Type WRX
Max. Flow
9000 m3/h
Max. Pressure
16 bar
Max. Density
2,500 g/l
PH Value
0 - 14
Max. Particle Size
240 mm
Type WRS
Max. Flow
1200 m2/h
Max. Pressure
10 bar
Max. Density
1,700 g/l
PH Value
0 - 14
Max. Particle Size
10 mm
Type WRV & WRXV
Max. Flow
4000 m2/h
Max. Pressure
16 bar
Max. Density
1,700 g/l
PH Value
0 - 14
Max. Particle Size
50 mm
Type IP
Max. Flow
4200 m2/h
Max. Pressure
100/ 15 bar
Max. Density
1,250 g/l
PH Value
0 - 14
Max. Particle Size
1 mm
Type HPH
Max. Flow
3500 m2/h
Max. Pressure
100 bar
Max. Density
1,250 g/l
PH Value
0 - 14
Max. Particle Size
1 mm
Type HPE
Max. Flow
3500 m3/h
Max. Pressure
250 bar
Max. Density
1,250 g/l
PH Value
0 - 14
Max. Particle Size
1 mm
Type HPXL & HPXLV
Max. Flow
2500 m2/h
Max. Pressure
40 bar
Max. Density
1,400 g/l
PH Value
0 - 14
Max. Particle Size
4 mm
Type HPXU & HPXM
Max. Flow
3250 m2/h
Max. Pressure
160 bar
Max. Density
1,400 g/l
PH Value
0 - 14
Max. Particle Size
4 mm
Κατασκευαστής
DÜCHTING PUMPEN
Key Benefits
High Performance and Reliability
Maximum Safety
Innovative Design
Environmentally Friendly
